-7%
Gigabyte B450M K DDR4 AMD Motherboard
Original price was: 10,500.00৳ .8,300.00৳ Current price is: 8,300.00৳ .
Gigabyte H410M K (2.0) DDR4 Intel Motherboard
Original price was: 9,500.00৳ .8,600.00৳ Current price is: 8,600.00৳ .
Gigabyte A520M K V2 DDR4 AM4 Socket AMD Motherboard
Original price was: 9,100.00৳ .8,500.00৳ Current price is: 8,500.00৳ .
Quick Overview
- Chipset – AMD A520
- Sockets Supported – AM4
- Supported CPU – AMD Ryzen 5000 G-Series / 5000 Series Processors/ 4000 G-Series / 3000 Series Processors.
- Generation – Not Applicable
- Memory Slot – 2
- Memory Max. – 64GB
- Back-Connect Design – No
| Brands |
|---|
Description
General
Brand
Gigabyte
Model

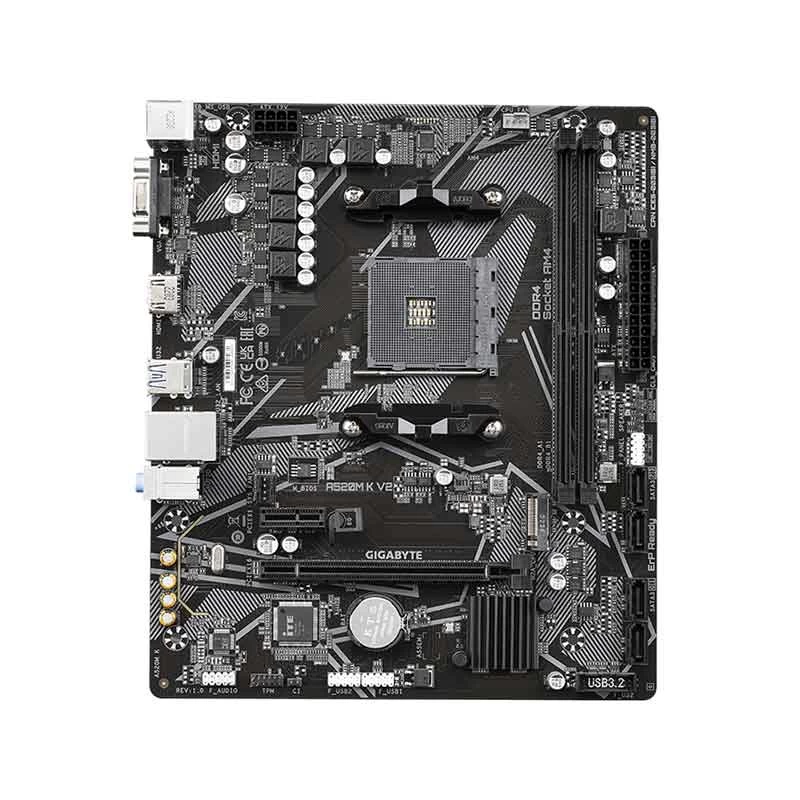

Gigabyte A520M K V2
Body Color
Black
CPU
Chipset Brand
AMD
Chipset
AMD A520
Sockets Supported
AM4
Built-in Processor
No
Supported CPU
AMD Ryzen 5000 G-Series / 5000 Series Processors/ 4000 G-Series / 3000 Series Processors.
Generation
Not Applicable
Memory Support
Memory Type
DDR4
Memory MHz
5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz.
Memory Channel
2
Memory Slot
2
Memory Slot (Additional Info)
2 x DIMM
Memory Max.
64GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details
1 x M.2 M key type 2280 Supports SATA and PCIe 3.0 x4/x2 SSD
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot supporting PCIe 3.0 and running at x16, 1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1
Audio & Video
Audio Chipset
Realtek Audio CODEC High Definition Audio
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek GbE LAN chip
LAN Speed (Mbps)
10/100/1000Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
No
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 10
RGB Support
No
RGB Connector
No
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
1 x 128 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 10 / 11
Compatible Products
Compatible with AM4 Sockets AMD Ryzen 5000 G-Series / 5000 Series Processors/ 4000 G-Series / 3000 Series Processors.
Warranty
Warranty Details
3 year
Additional Info
Feature
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs, PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support, GbE LAN with Bandwidth Management, 8-Channel HD Audio with High Quality Audio Capacitors, Rear HDMI and D-sub for Multi-display Support, Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, GIGABYTE APP Center, Simple and Easy Use.
Others
Back Panel Connectors: (3 x audio jacks, 1 x PS/2 keyboard/mouse port), Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header). Maximum shared memory of 16GB.
Country Of Origin
Taiwan
Made in/ Assemble
China
