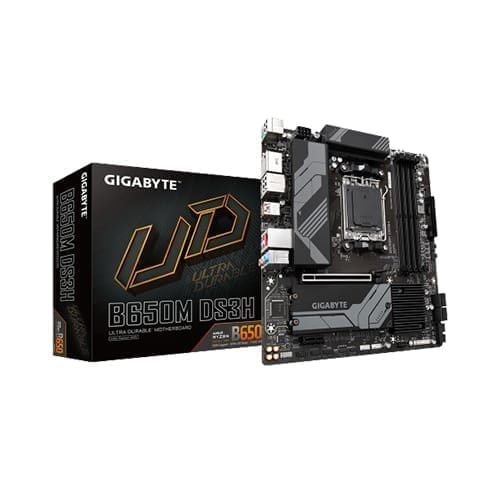

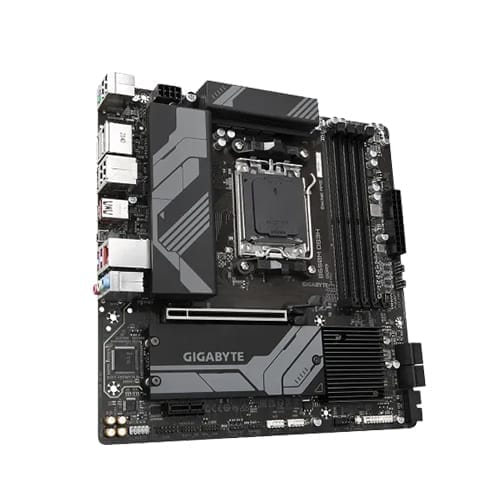

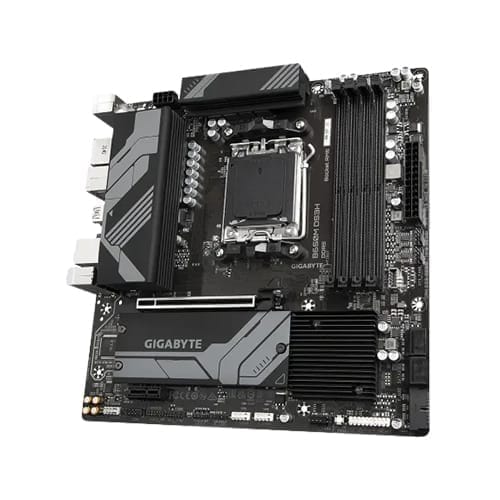

GIGABYTE B650M DS3H DDR5 AMD AM5 MICRO-ATX MOTHERBOARD
Original price was: 22,900.00৳ .21,400.00৳ Current price is: 21,400.00৳ .
Key Features
- Supported CPU: Ryzen 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 128GB, 6400(OC)
- Graphics Output: 2x Display Port, 1 x HDMI
- Features: 2.5GbE LAN
| Brands |
|---|
Description
| Processor | |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors |
| Mainboard | |
| Chipset | AMD B650 |
| Memory | |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Storage | |
| Supported Storage | CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors |
| Graphics | |
| Graphics | ntegrated Graphics Processor: 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. Support for up to 3 displays at the same time |
| Audio & Microphone | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Networking & Connectivity | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Technical Info | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Ports | |
| Slots | 4 DIMMs |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| External I/O Ports | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
| USB | CPU:. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel. CPU + USB 2.0 Hub:. 4 x USB 2.0/1.1 ports on the back panel. Chipset:. . 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB . header). . 4 x USB 2.0/1.1 ports available through the internal USB headers |
| HDMI | 1x HDMI |
| Special Features | |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Physical Specification | |
| Form Factor | Micro ATX |
| Warranty Information | |
| Warranty | 3 Years |
