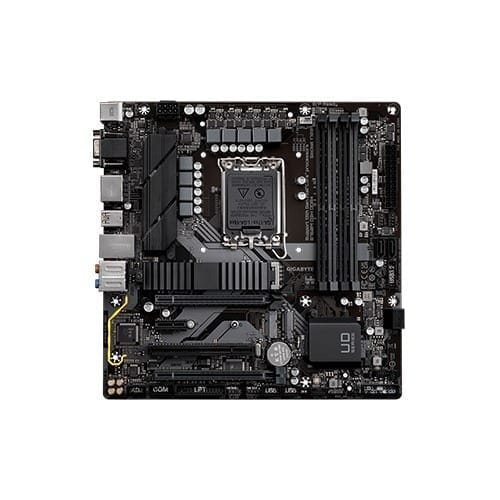

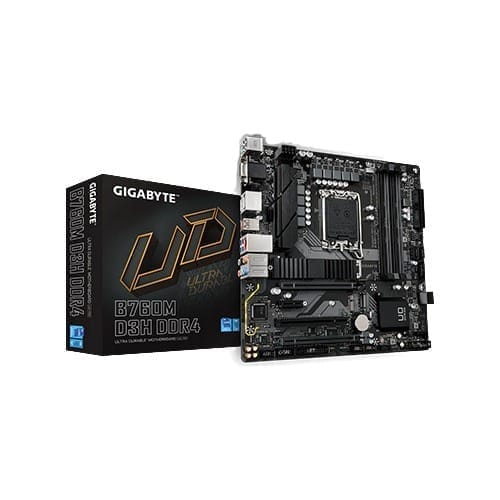

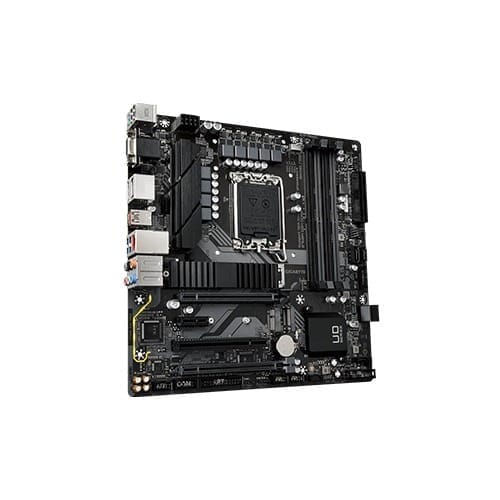

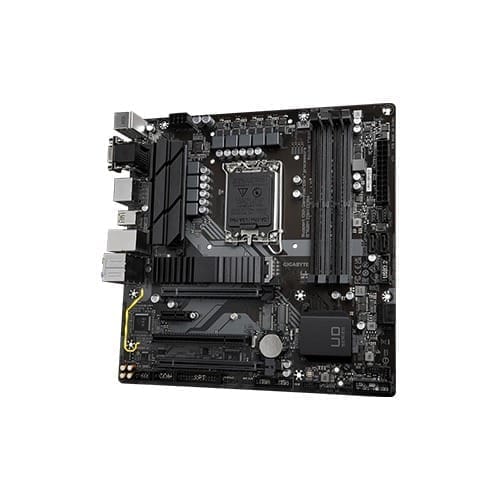

GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard
Original price was: 18,800.00৳ .16,800.00৳ Current price is: 16,800.00৳ .
- Chipset – Intel B760
- Sockets Supported – LGA1700
- Memory Slot – 4
- Memory Max – 128GB
| Brands |
|---|
| Processor | |
| Supported CPU | Support for the 14th, 13th, and 12th Generation Intel Core Pentium Gold and Celeron Processors |
| CPU Socket | LGA1700 |
| Mainboard | |
| Chipset | Intel B760 Express Chipset |
| Memory | |
| Memory Type | DDR4 |
| Memory Slot | 4 |
| Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/ 2400/2133 MT/s memory modules Dual channel memory architecture Maximum Memory |
| Storage | |
| Supported Storage | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: |
| Graphics | |
| Graphics | Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
| Audio & Microphone | |
| Audio Pin | 3 x audio jacks |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Networking & Connectivity | |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Software | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Technical Info | |
| Model | B760M D3HP DDR4 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Ports | |

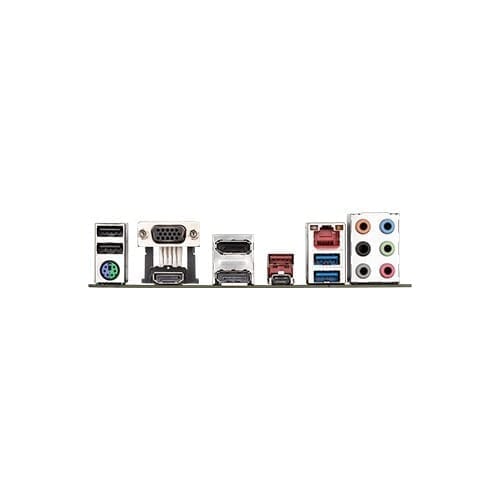

| I/O Port | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors |
| PCI Card Slot | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: |
| USB | Chipset: – 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) – 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| HDMI | 1 x HDMI port |
| Special Features | |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Physical Specification | |
| Color | Black |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Others | |
| Other Features | Display Port (s): 1 x DisplayPort D-Sub (s): 1 x D-Sub port RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Warranty Information | |
| Warranty | 3-Years |
