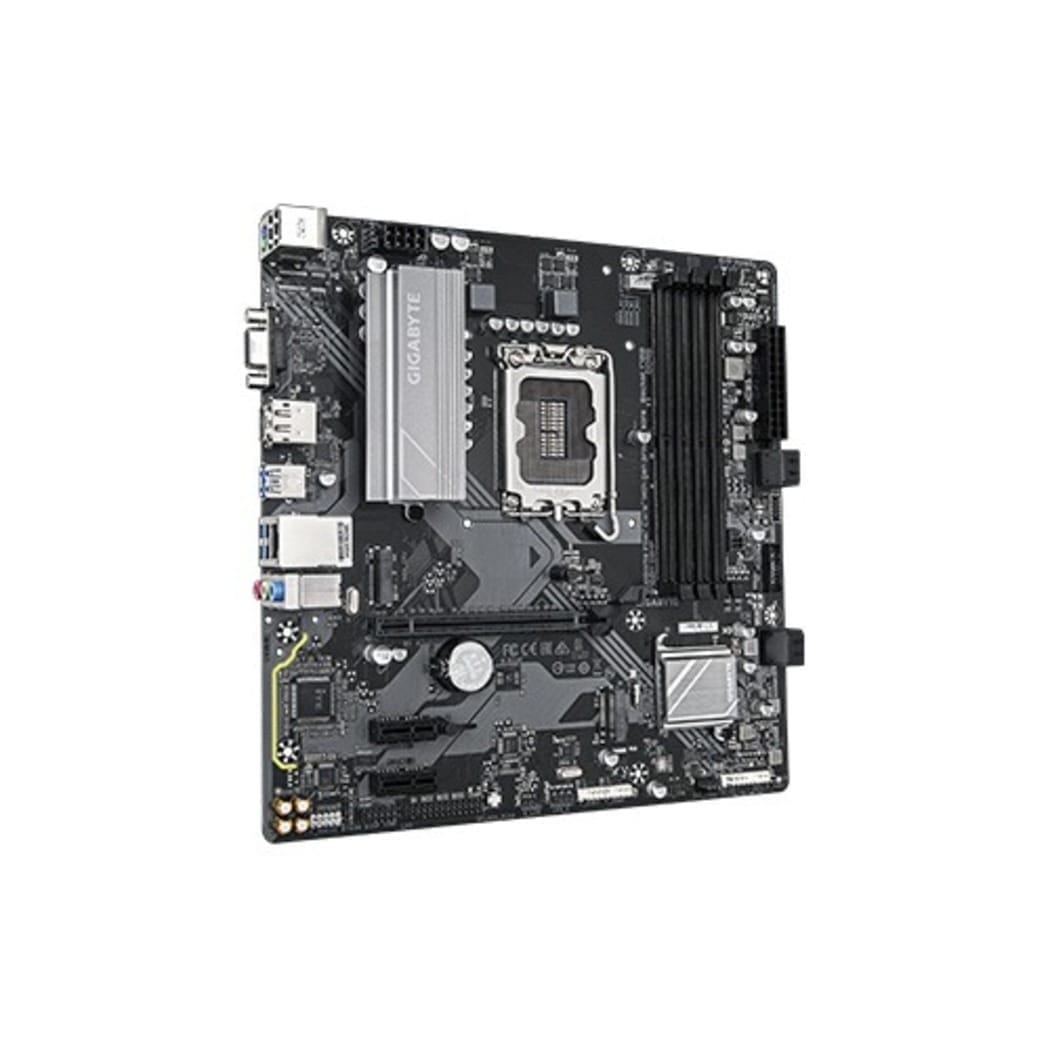

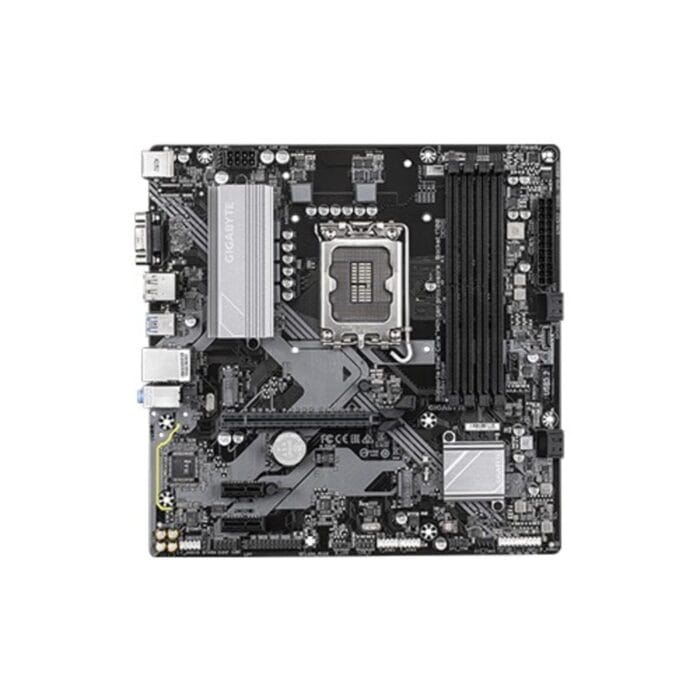

Gigabyte B760M D3HP DDR5 14th 13th and 12th Gen Intel Motherboard
Original price was: 20,000.00৳ .16,800.00৳ Current price is: 16,800.00৳ .
- Chipset – Intel B760
- Sockets Supported – LGA1700
- Memory Slot – 4
- Memory Max. – 256GB
| Brands |
|---|
| Processor | |
| Supported CPU | 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| CPU Socket | LGA1700 |
| Mainboard | |
| Chipset | Intel B760 |
| Memory | |
| Memory Specifications | Max 256GB |
| Memory Type | DDR5 |
| Memory Clock | 5600/ 5200/ 4800/ 4400 MHz ECC, non-ECC, Un-buffered DIMM |
| Memory Slot | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Storage | |
| SSD (Solid-State Drive) | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
| Audio & Microphone | |
| Audio | Realtek Audio CODEC |
| Channel | 2/4/5.1/7.1 |
| Networking & Connectivity | |
| LAN | Chaipset: Realtek GbE LAN Speed: 10/100/1000Mbps |
| Technical Info | |
| Supported Operating System | Window 10, 11 |
| Model | B760M D3HP |
| BIOS | Type: 1 x 128 Mbit flash Model: AMI UEFI BIOS |
| Battery And Power | |
| Power Consumption | 60W |

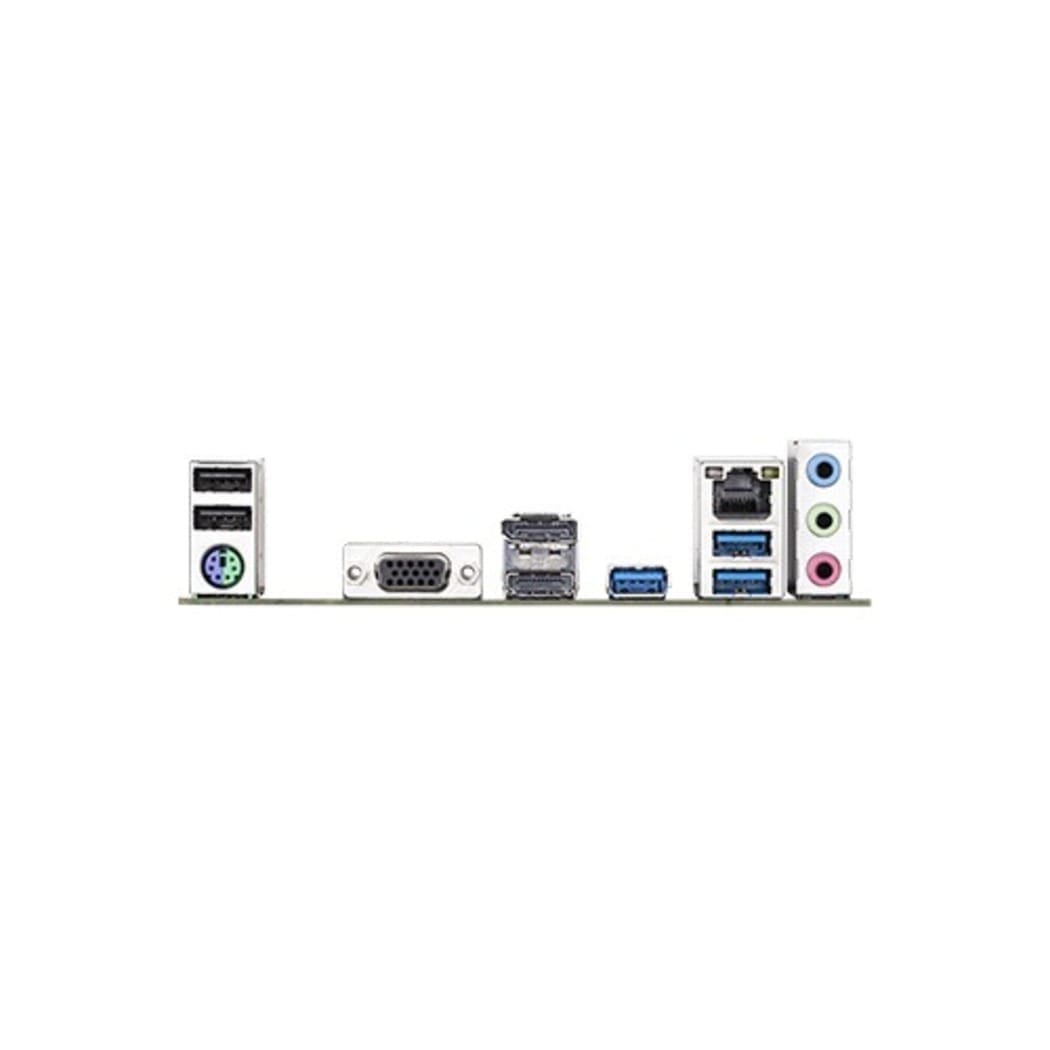

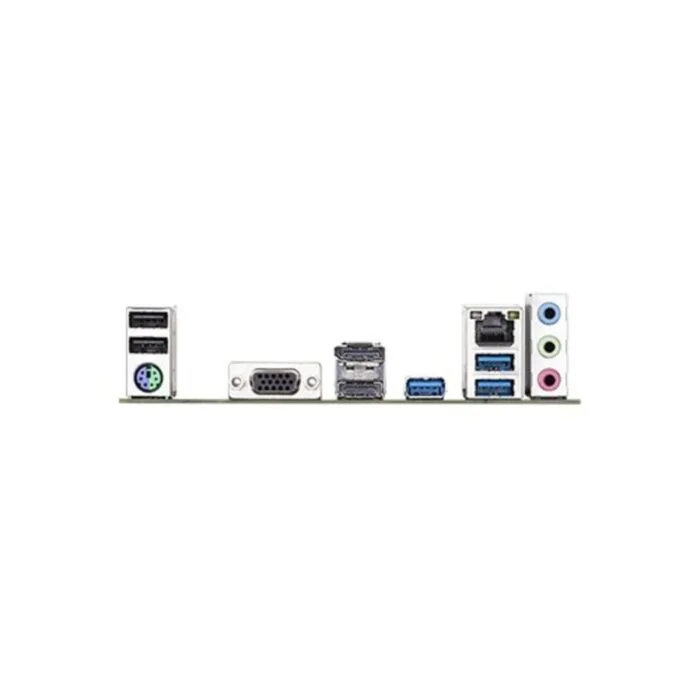

| Ports | |
| PCI Card Slot | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 2 x PCI Express x1 slots supporting PCIe 3.0 and running at x1 |
| VGA | 1 |
| USB | 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0/1.1 Type-A |
| HDMI | 1 |
| Special Features | |
| RGB | Support: ARGB Sync: RGB Fusion Connector: 1 x addressable LED strip header, 1 x RGB LED strip header |
| Features | D-Sub port, supporting a maximum resolution of 1920×1200@60Hz, HDMI port, supporting a maximum resolution of 4096×2160@60Hz, DisplayPort, supporting a maximum resolution of 4096×2304@60Hz. |
| Physical Specification | |
| Color | Black |
| Form Factor | Micro-ATX |
| Others | |
| Compatible | Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor. |
| Other Features | DisplayPort (DP): 1 SATA Port: 4 x SATA Raid Support: 0, 1, 5 10 |
| Warranty Information | |
| Warranty | 3 Years |
